General Information
- Model: FD20T/FD25T
- Lifting capacity: 2.000kg/ 2.500kg
- Maximum lifting height: 6.000mm

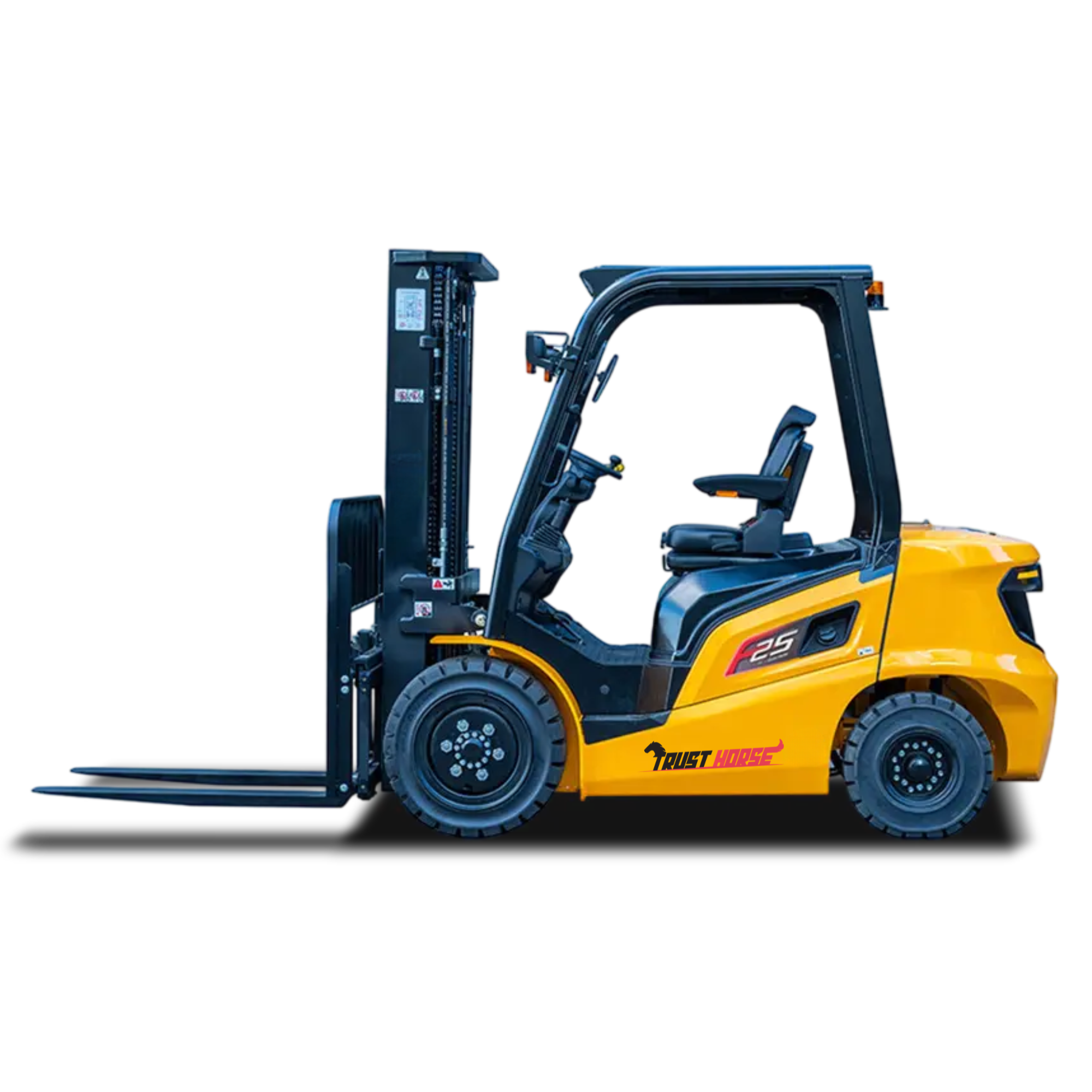

F Series Internal Combustion Forklift
The Trust Horse F Series is the latest generation of internal combustion forklifts, featuring a completely redesigned structure and modern styling to enhance both aesthetics and performance.
With significant improvements in design, durability, and operating efficiency, the F Series delivers reliable performance, greater productivity, and enhanced operator comfort. It is an ideal material handling solution for warehouses, logistics centers, manufacturing facilities, ports, and a wide range of industrial applications requiring dependable, heavy-duty performance.
MAIN SPECIFICATIONS
|
Model |
FD20T |
FD25T |
|
|
Rated Load Capacity |
Q(kg) |
2000 |
2500 |
|
Load Centre |
C(mm) |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2662 |
2662 |
|
Overall Width |
B1(mm) |
1180 |
1180 |
|
Overhead Guard Height |
H5(mm) |
2215 |
2215 |
|
Turning Radius (Outside) |
Wa(mm) |
2365 |
2365 |
|
Travel Speed (No Load) |
km/h |
19 |
19 |
|
Max.Gradeability (Full Load) |
% |
22-34 |
22-34 |
|
Wheelbase |
Y(mm) |
1650 |
1650 |
|
Total Weight |
kg |
3889 |
4129 |
|
Engine Model |
D04EG（EPA4）/ V2403（EPA IV /Eu V）/ S4S(Eu Ⅲ) / C240PKJ30 (Eu Ⅲ) / D24(Eu V ) / 3E22YG51(Eu V ) / A498BPG-521(Eu Ⅲ ) / C490BPG-237 (CN Ⅱ)
|
||
