General Information
- Model: FB30-FHNLF/ FB35-FHNLF
- Lifting capacity: 3,000 - 3,500kg
- Maximum lifting height: 6,000mm

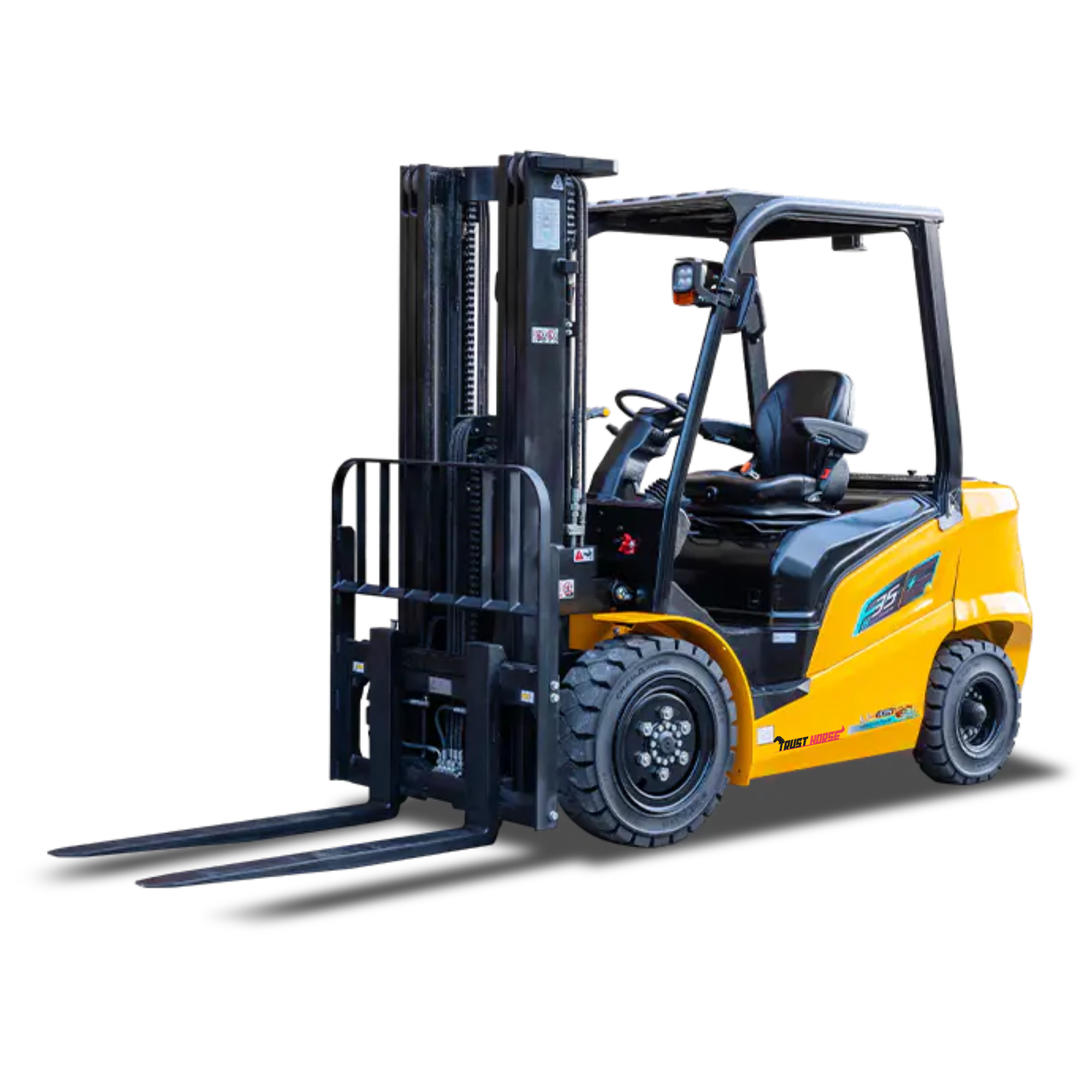

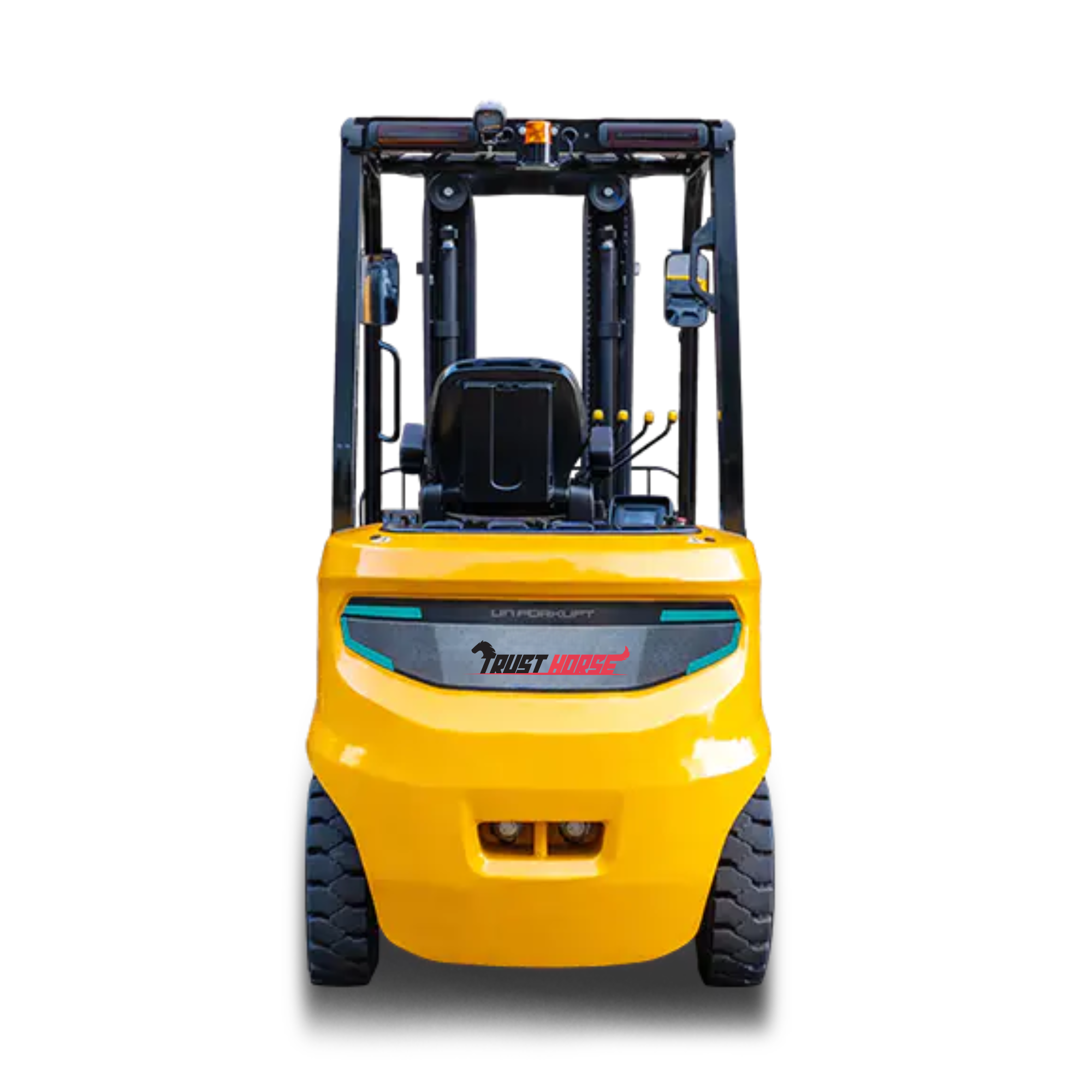

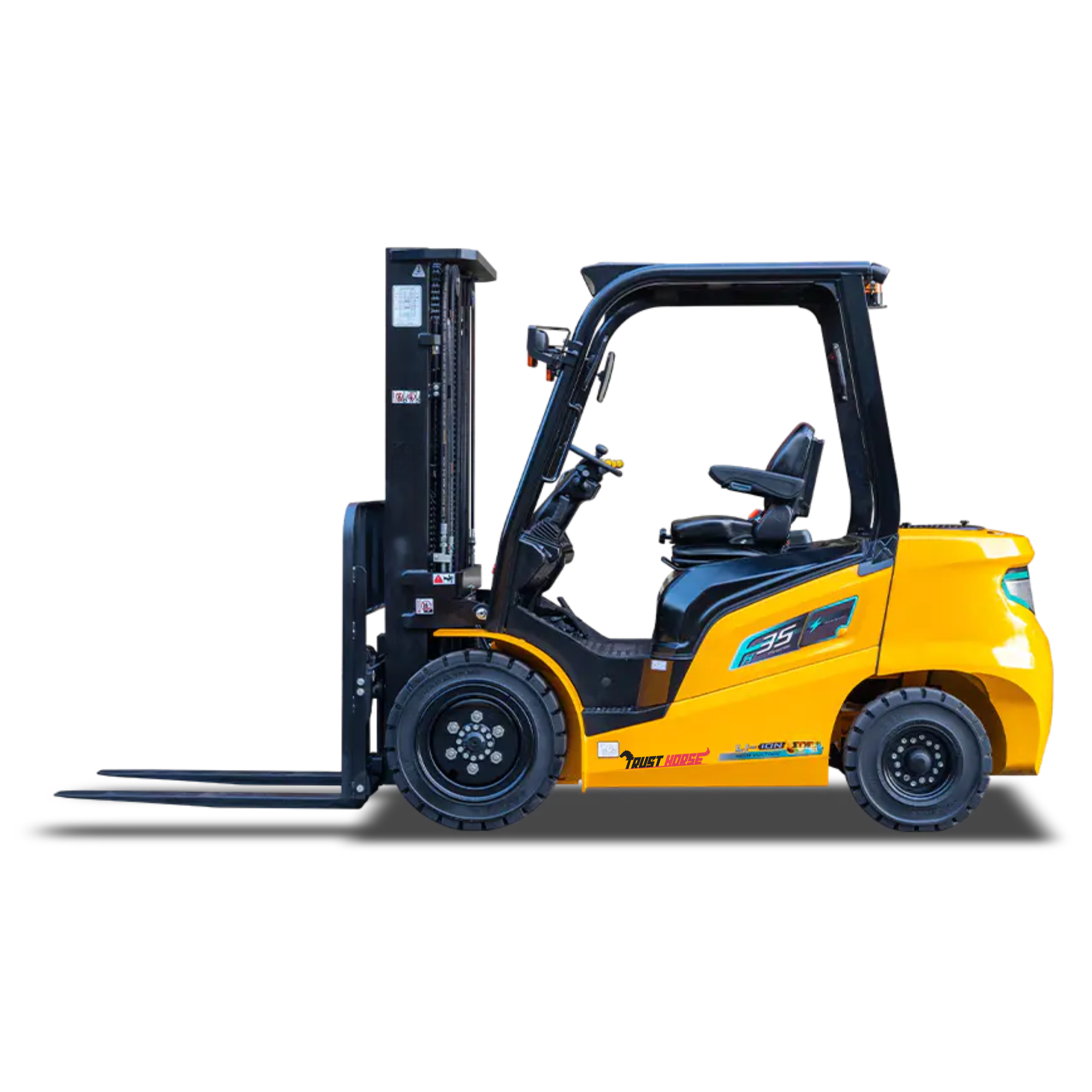

Trust Horse FH Series – Electric Efficiency. Internal Combustion Strength.
Built on the proven structure of an internal combustion forklift, including the mast, drive axle, and steering axle, the FH Series delivers exceptional load capacity, outstanding durability, and reliable performance for demanding material handling applications.
Powered by advanced high-voltage lithium battery technology, the FH Series provides powerful performance, fast charging, energy-efficient operation, and zero emissions. It is an ideal solution for warehouses, logistics centers, manufacturing plants, ports, and other heavy-duty industrial environments that require high productivity and dependable operation.
Main Specification
| Model | FB30-FHNLF | FB35-FHNLF | |
| Rated Load Capacity | Q(kg) | 3000 | 3500 |
| Load Centre | C(mm) | 500 | 500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) | 2700 | 2770 |
| Overall Width | B1(mm) | 1220 | 1220 |
| Overhead Guard Height | H5(mm) | 2235 | 2235 |
|
Turning Radius (Outside) |
Wa(mm) | 2450 | 2500 |
|
Travel Speed (No Load) |
km/h | 20/20 | 20/20 |
|
Max.Gradeability (Full Load) |
% | 20 | 20 |
| Wheelbase | Y(mm) | 1700 | 1700 |
| Total Weight | kg | 4207 | 4567 |
| Battery | V/Ah | 309.12V/96AH | 309.12V/96AH |
