General Information
- Model: FB100
- Lifting capacity: 10,000kg
- Maximum lifting height: 6,000mm

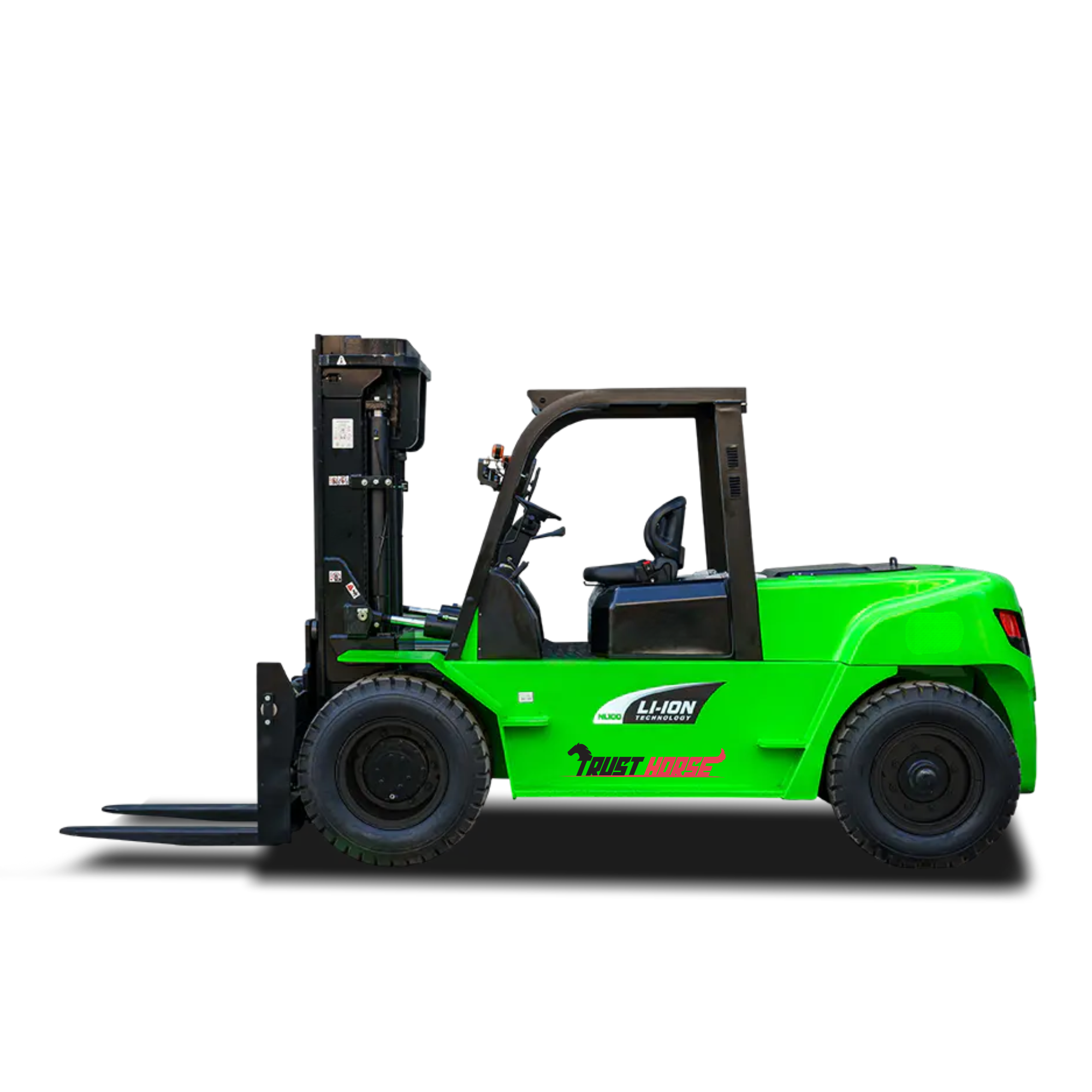

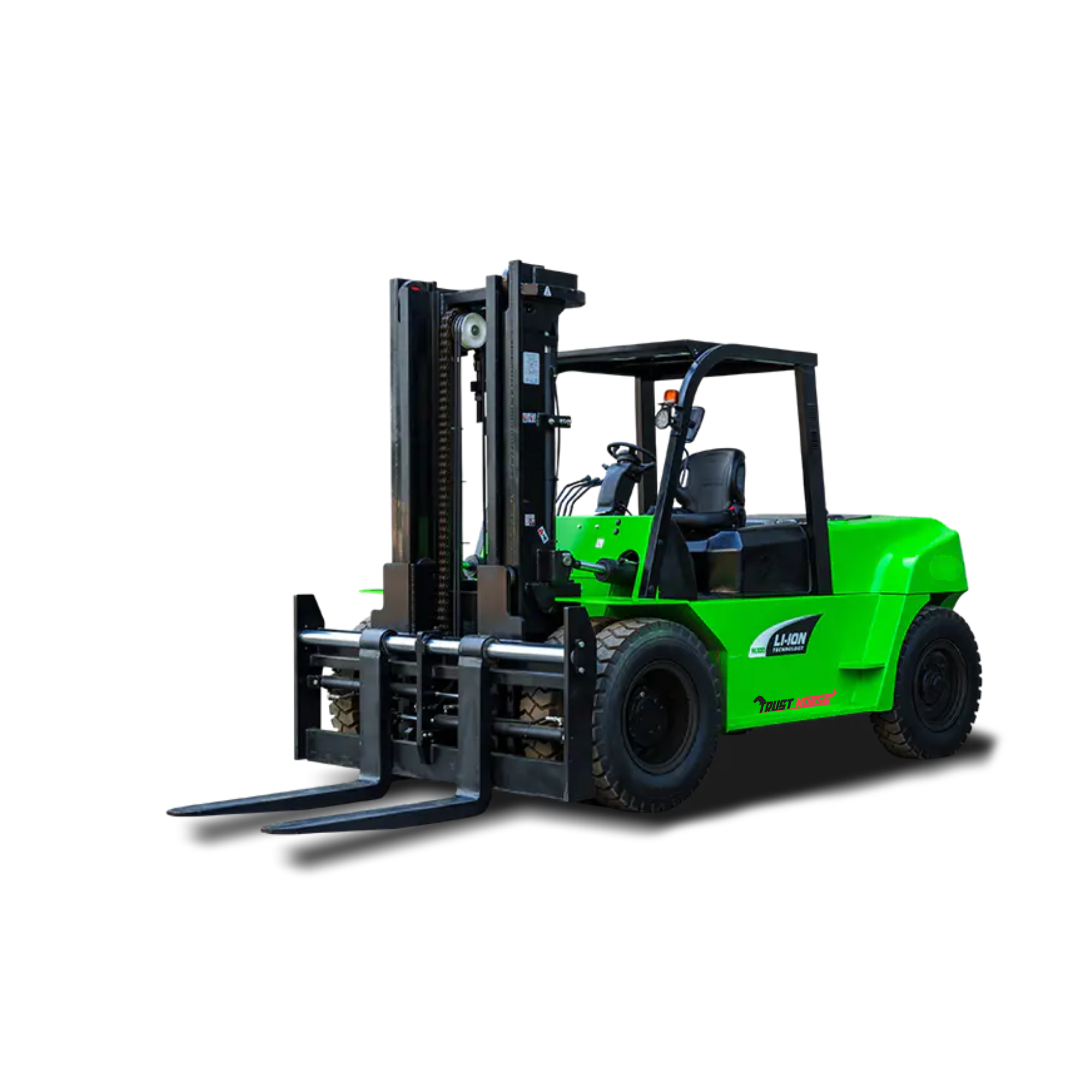

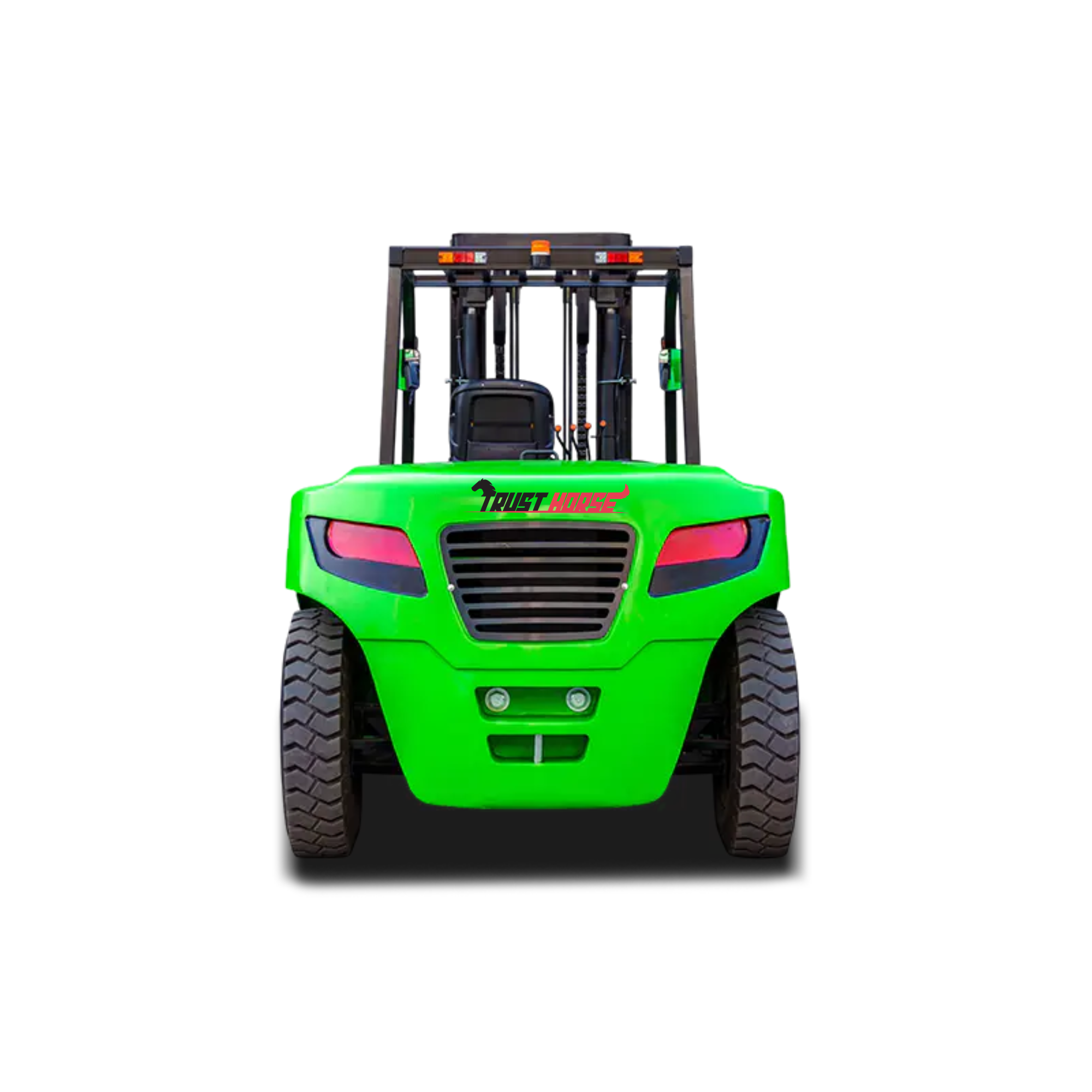

The Trust Horse NL Series 10.0 Ton Lithium Battery Forklift is a high-performance electric forklift designed to replace traditional large-capacity internal combustion forklifts in heavy-duty material handling applications.
Equipped with an advanced high-voltage lithium battery system and efficient electric drive technology, it delivers powerful lifting performance, zero emissions, and outstanding reliability. Its robust construction and stable operation enable continuous performance in demanding working environments, ensuring maximum productivity and reduced operating costs.
The NL Series 10.0 Ton is an ideal solution for ports, steel plants, logistics centers, warehouses, building material industries, and other heavy industrial applications, offering the perfect balance of power, energy efficiency, and environmental sustainability.
Main Specification
|
Model |
FB100 |
|
|
Rated Load Capacity |
Q(kg) |
10000 |
|
Load Centre |
C(mm) |
600 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
4281 |
|
Overall Width |
B1(mm) |
2165 |
|
Overhead Guard Height |
H5(mm) |
2540 |
|
Turning Radius (Outside) |
Wa(mm) |
3900 |
|
Travel Speed (No Load) |
km/h |
12/13 |
|
Max.Gradeability (Full Load) |
% |
12/13 |
|
Wheelbase |
Y(mm) |
2800 |
|
Total Weight |
kg |
12900 |
|
Battery |
V/Ah |
76.8V/840AH |
