General Information
- Model: FB25
- Lifting capacity: 5000kg
- Maximum lifting height: 6,000mm

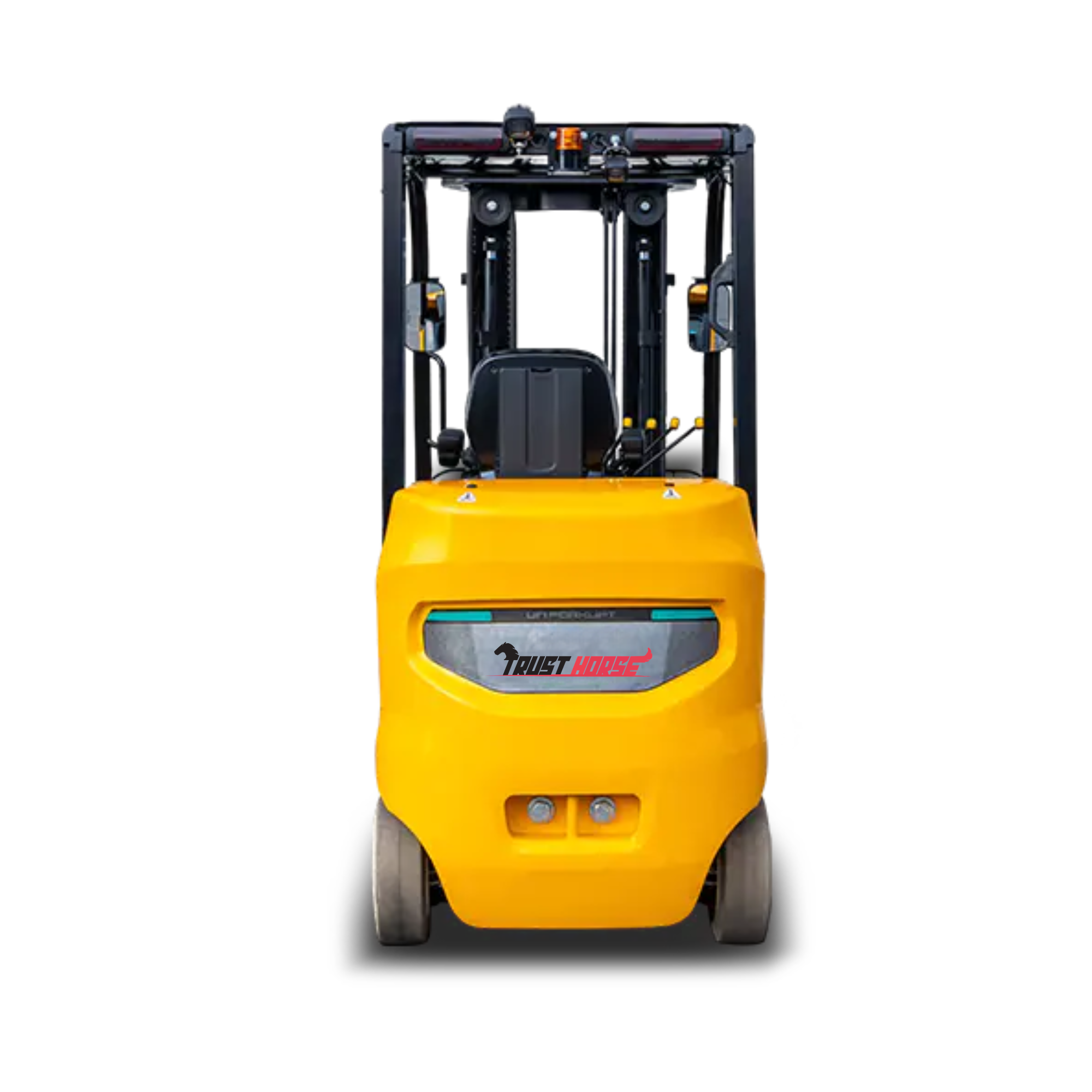

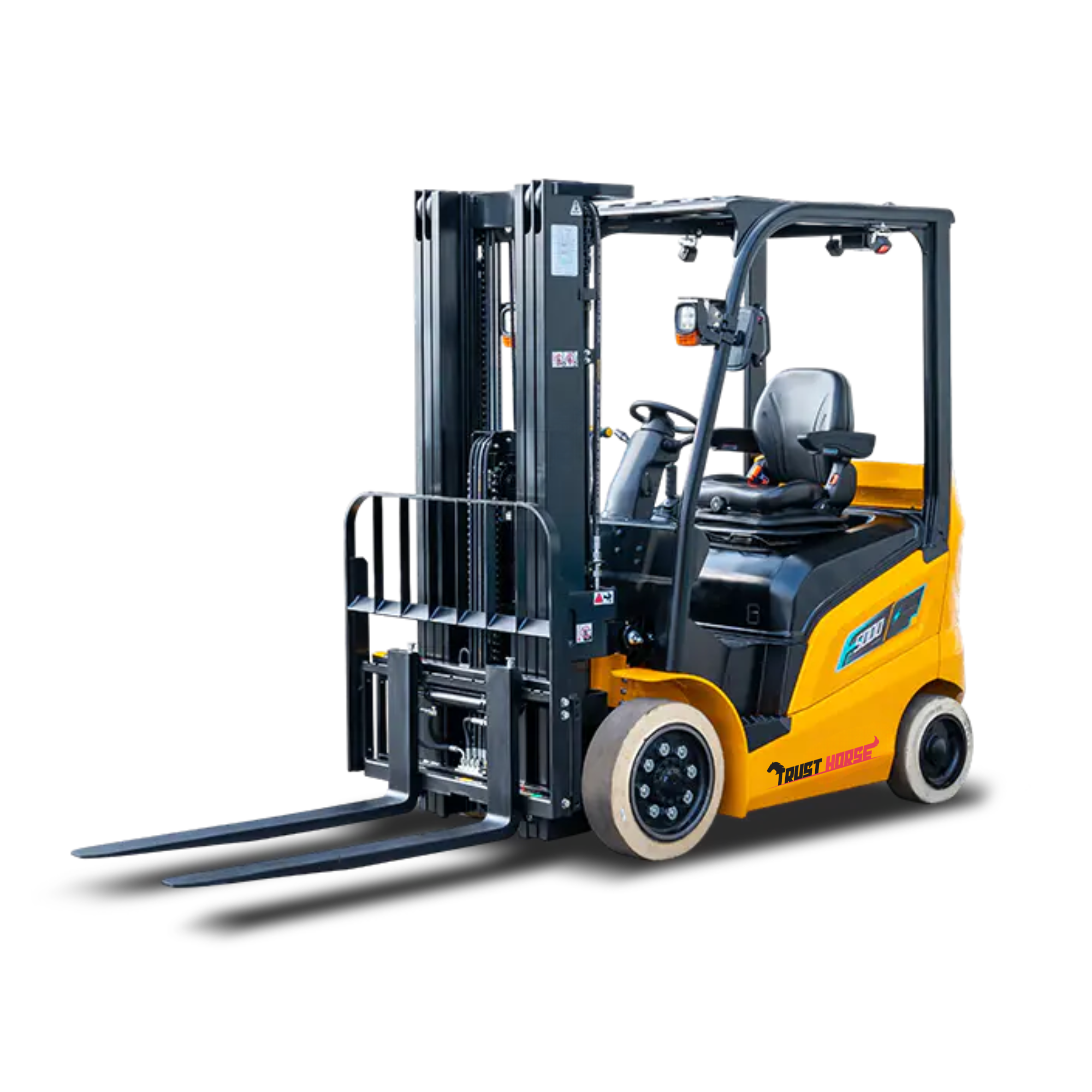

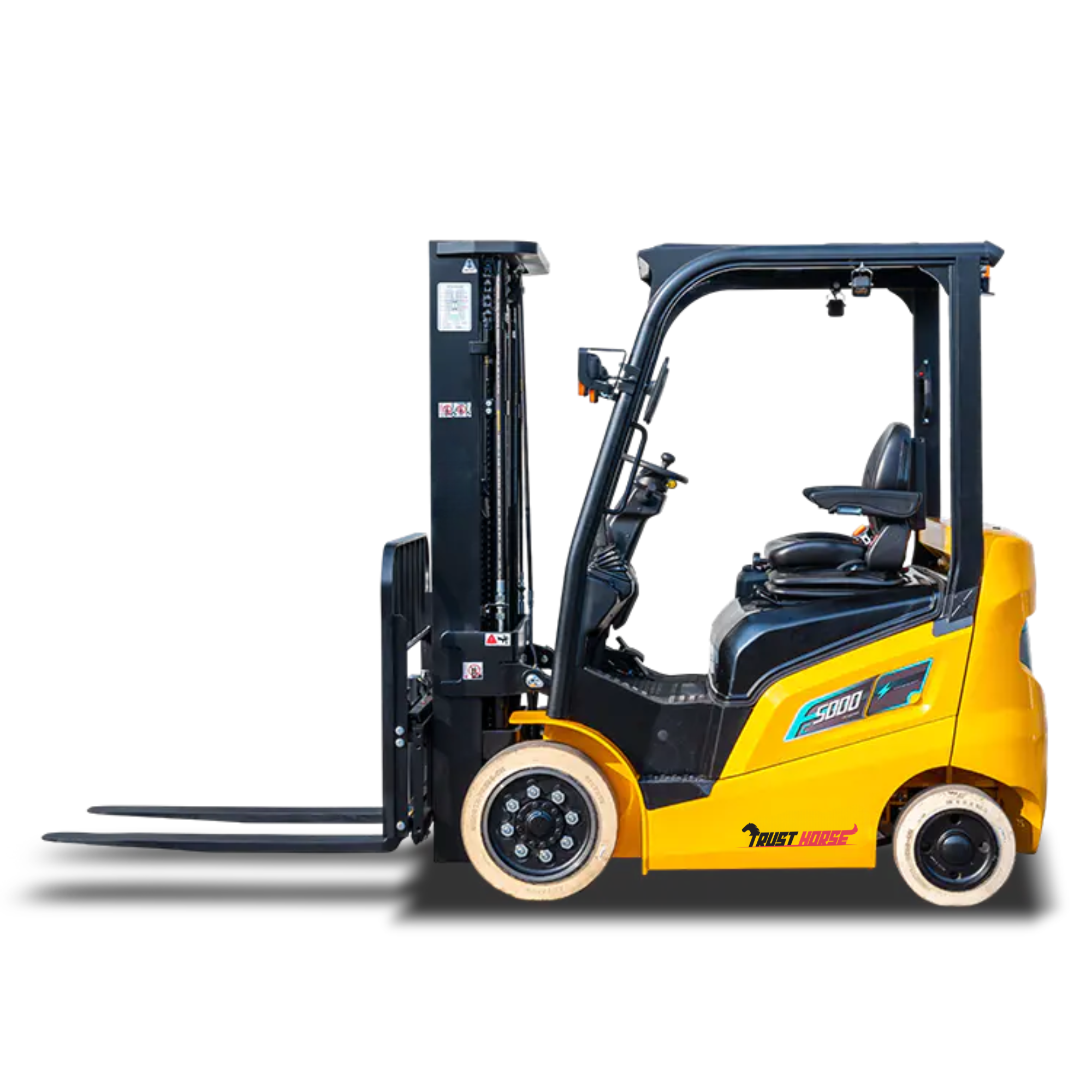

The Trust Horse FC Series 4-Wheel Cushion Tire Lithium Battery Forklift combines a compact design, excellent maneuverability, and efficient electric performance to meet the demands of modern indoor material handling.
Designed for warehousing, distribution centers, and light-to-medium industrial applications, the FC Series delivers outstanding productivity, reliable performance, and superior operator comfort. Equipped with advanced lithium battery technology, it offers fast charging, maintenance-free operation, zero emissions, and quiet performance, making it an ideal solution for clean, efficient, and cost-effective indoor operations.
Main Specification
|
Model |
FB25 |
|||||||||
|
Rated Load Capacity |
lb(kg) |
5000(2270) |
||||||||
|
Load Centre |
c |
in (mm) |
24(600） |
|||||||
|
Wheelbase |
y |
y(mm) |
55.1（1400） |
|||||||
|
Total Weight |
lb(kg) |
9240（4200） |
||||||||
|
Overhead Guard Height |
h6 |
in (mm) |
87(2210) |
|||||||
|
Length to Face of Fork (Without Fork) |
l2 |
in (mm) |
87.6(2224) |
|||||||
|
Overall Width |
b1 |
in (mm) |
42.5(1080) |
|||||||
|
Turning Radius (Outside) |
Wa |
in (mm) |
76.8（1950） |
|||||||
|
Travel Speed (No Load) |
mph(km/h) |
8.7（14） |
||||||||
|
Max.Gradeability (Full Load) |
% |
15 |
||||||||
|
Battery |
V/Ah |
80/350 |
||||||||
