- Model: FG20T/ FG25T/ FL20T/ FL25T/ FGL20T/ FGL25T
- Lifting load: 2,000kg/ 2,500kg
- Maximum lifting height: 6,000mm

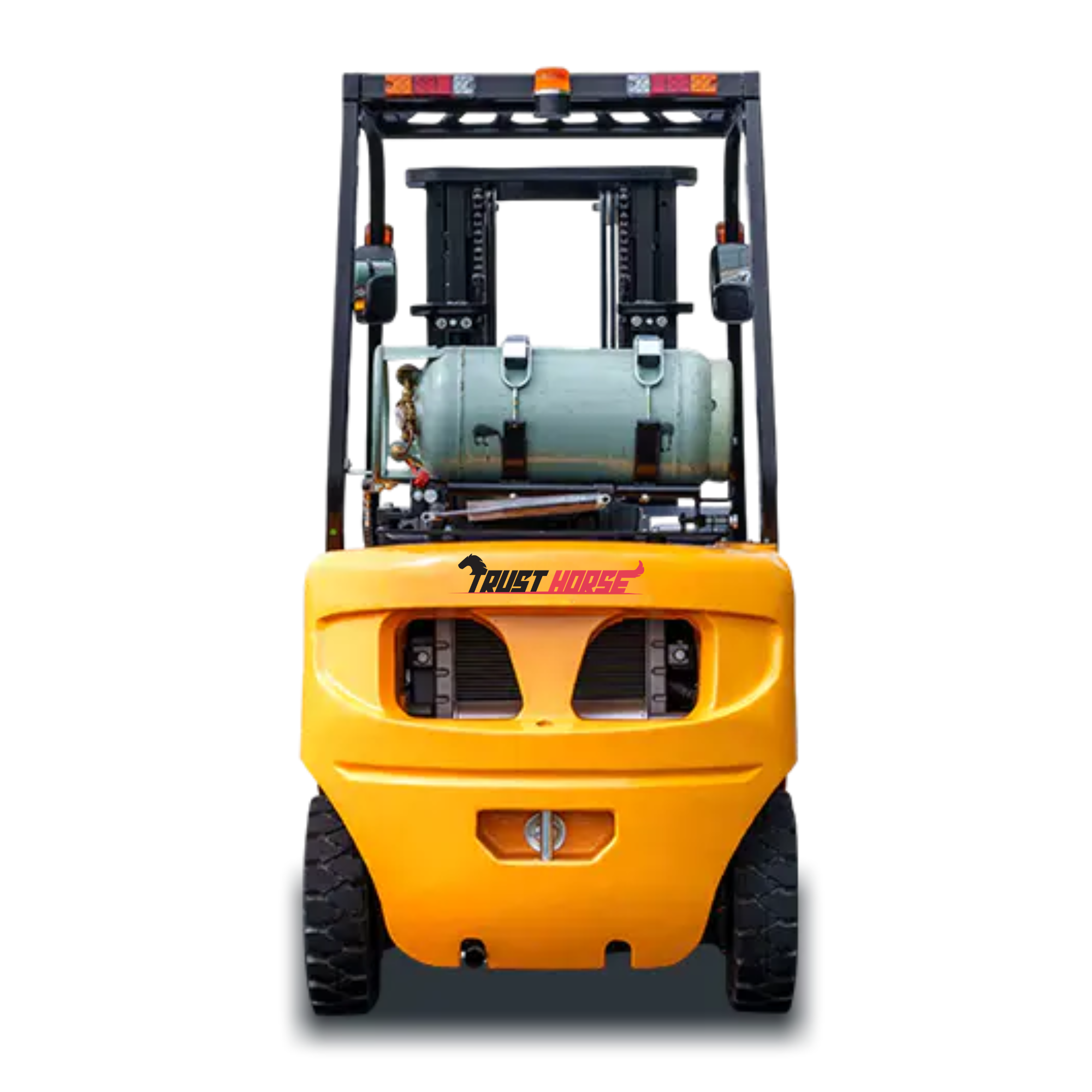

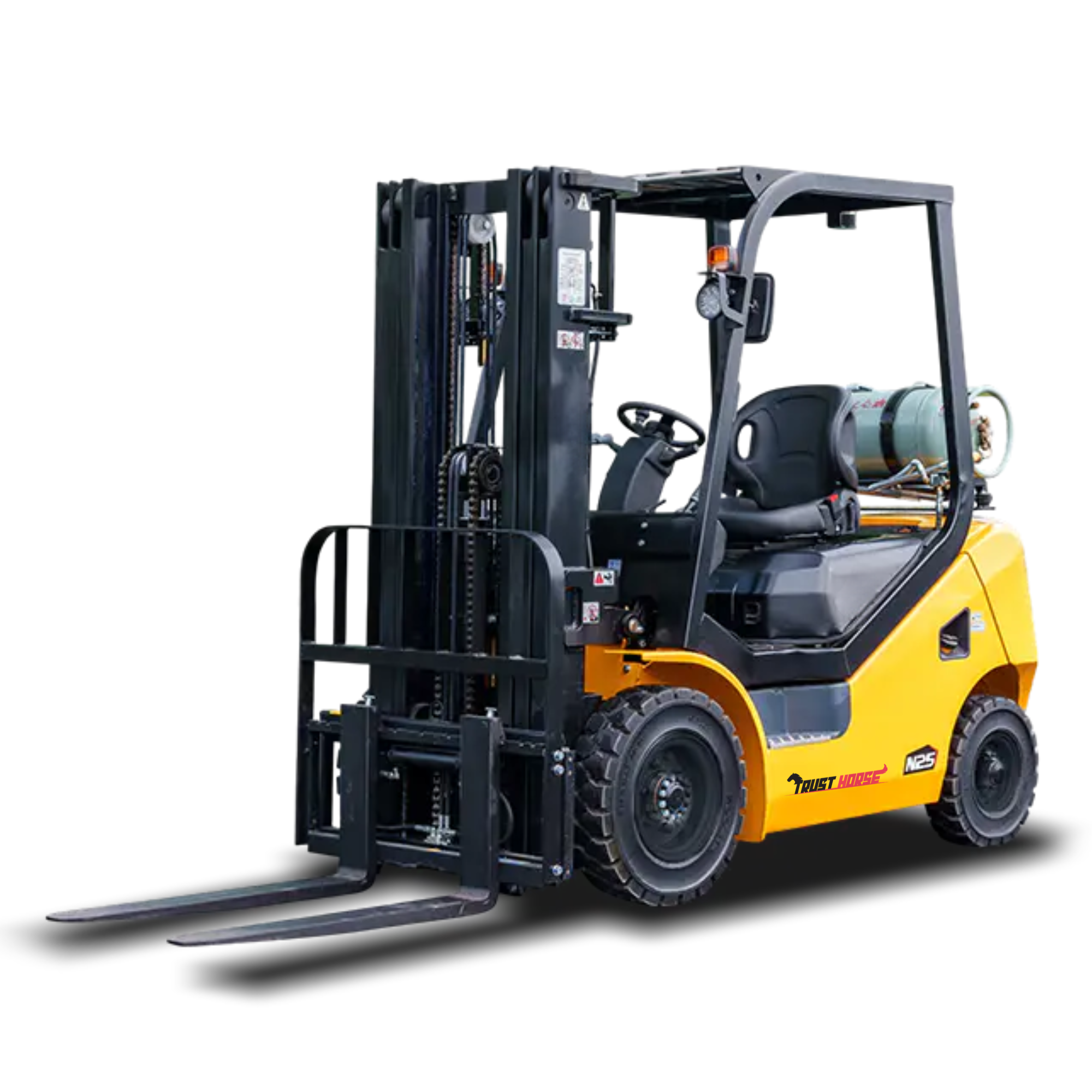

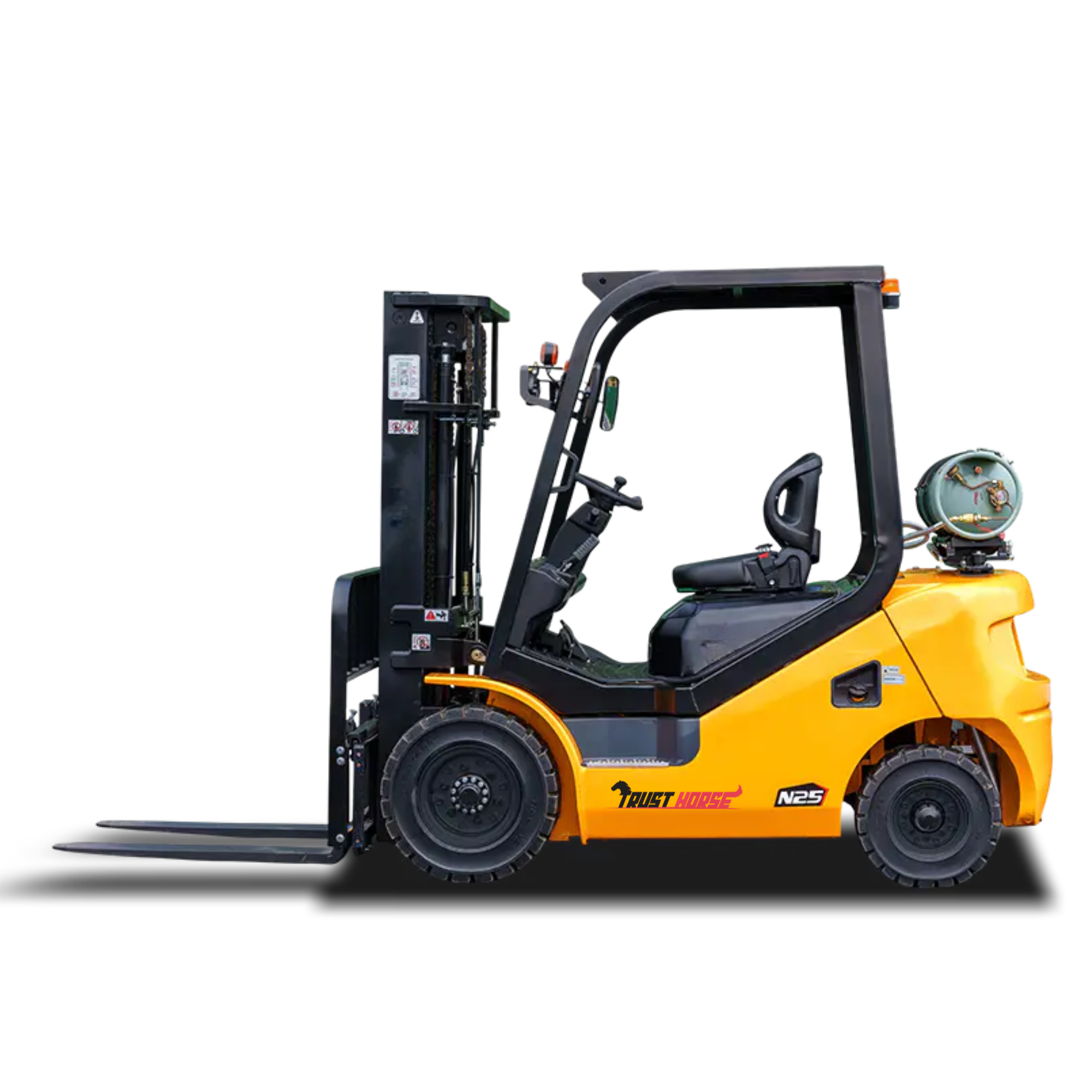

N Series 2.0–2.5 Ton LPG & Gasoline Forklift
The Trust Horse N Series 2.0–2.5 ton LPG & gasoline forklift is an ideal material handling solution for small and medium-sized businesses with diverse operational requirements.
Equipped with an advanced fuel management system and electronic throttle control, it delivers smooth acceleration, responsive handling, and improved fuel efficiency. Its ergonomic design, intuitive controls, and extended maintenance intervals help minimize operating costs while maximizing productivity, making it well suited for warehouses, logistics centers, manufacturing facilities, and distribution operations.
MAIN SPECIFICATIONS
|
Model |
FG20T |
FG25T |
FL20T |
FL25T |
FGL20T |
FGL25T |
|
|
Rated Load Capacity |
Q(kg) |
2000 |
2500 |
2000 |
2500 |
2000 |
2500 |
|
Load Centre |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2630 |
2630 |
2630 |
2630 |
2630 |
2630 |
|
Overall Width |
B1(mm) |
1170 |
1170 |
1170 |
1170 |
1170 |
1170 |
|
Overhead Guard Height |
H5(mm) |
2215 |
2215 |
2215 |
2215 |
2215 |
2215 |
|
Turning Radius (Outside) |
Wa(mm) |
2365 |
2365 |
2365 |
2365 |
2365 |
2365 |
|
Travel Speed (No Load) |
km/h |
21 |
21 |
21 |
21 |
21 |
21 |
|
Max.Gradeability (Full Load) |
% |
20 |
20 |
20 |
20 |
20 |
20 |
|
Wheelbase |
Y(mm) |
1650 |
1650 |
1650 |
1650 |
1650 |
1650 |
|
Total Weight |
kg |
3620 |
3860 |
3620 |
3860 |
3620 |
3860 |
|
Engine Model |
GK25 |
GK25 |
GK25 |
GK25 |
GK25 |
GK25 |
