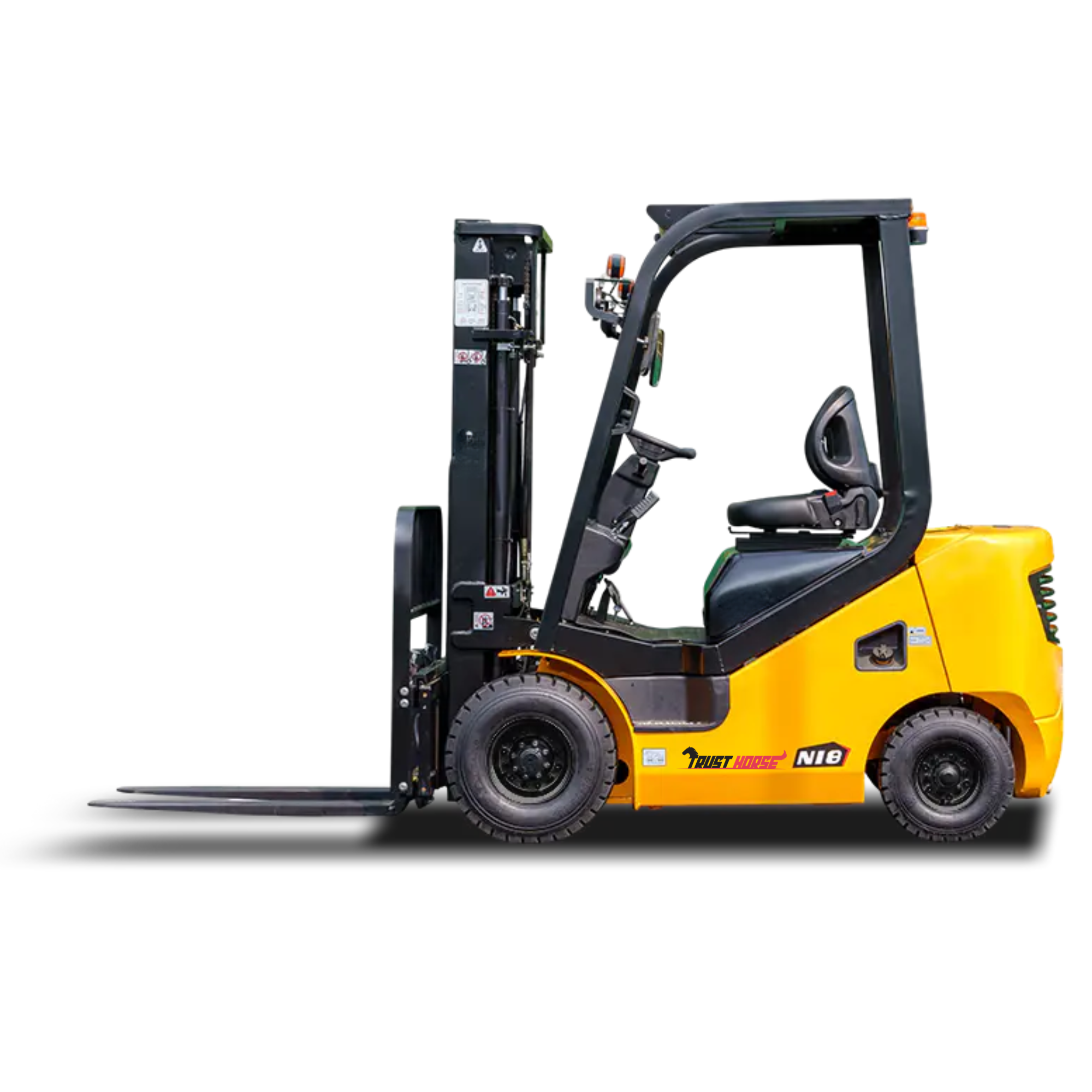

General Information
- Model: FD15T/ FD18T
- Lifting capacity: 1,500 - 1,800kg
- Maximum lifting height: 6,000mm
Durability & Outstanding performance
Scientific design and sturdy chassis combined with powerful transmission system and Japanese technology gearbox help the forklift operate stably and efficiently.
Reliable hydraulic system using quality valves and pumps, ensuring fast lifting and steering speed.
Advanced cooling technology combined with large capacity radiator helps the forklift operate efficiently even in high temperature environments.
Safety & Ergonomics
OPS system and seat switch help protect the operator's safety.
Wide-view mast helps the driver always have a clear and safe view.
Sturdy overhead guard (OHG) protects the operator from falling objects.
Suspension cab with ample legroom, adjustable steering wheel and comfortable seats.
Optional driveline suspension.
Easy maintenance
The engine cover opens almost 90 degrees, making daily maintenance easier, with quick access to all components.
Easy to replace transmission oil filter, saving maintenance time.
MAIN SPECIFICATIONS
|
Model |
FD15T-NGA5 |
FD18T-NGA5 |
FD15T-NJB1 |
FD18T-NJB1 |
FD15T-NJE3 |
FD18T-NJE3 |
|
|
Rated Load Capacity |
Q(kg) |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
|
Load Centre |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2289 |
2294 |
2289 |
2294 |
2289 |
2294 |
|
Overall Width |
B1(mm) |
1082 |
1082 |
1082 |
1082 |
1082 |
1082 |
|
Overhead Guard Height |
H5(mm) |
2160 |
2160 |
2160 |
2160 |
2160 |
2160 |
|
Turning Radius (Outside) |
Wa(mm) |
2100 |
2100 |
2100 |
2100 |
2100 |
2100 |
|
Travel Speed (No Load) |
km/h |
14.5 |
14.5 |
14.5 |
14.5 |
14.5 |
14.5 |
|
Max.Gradeability (Full Load) |
% |
20 |
20 |
20 |
20 |
20 |
20 |
|
Wheelbase |
Y(mm) |
1410 |
1410 |
1410 |
1410 |
1410 |
1410 |
|
Total Weight |
kg |
2860 |
2990 |
2860 |
2990 |
2860 |
2990 |
|
Engine Model |
NC485BPG |
NC485BPG |
C240NKFC-01 |
C240NKFC-01 |
4TNE92 |
4TNE92 |
