General Information
- Model: FBRS15-KUQZ2
- Lifting capacity: 1,500kg
- Maximum lifting height: 6,000mm

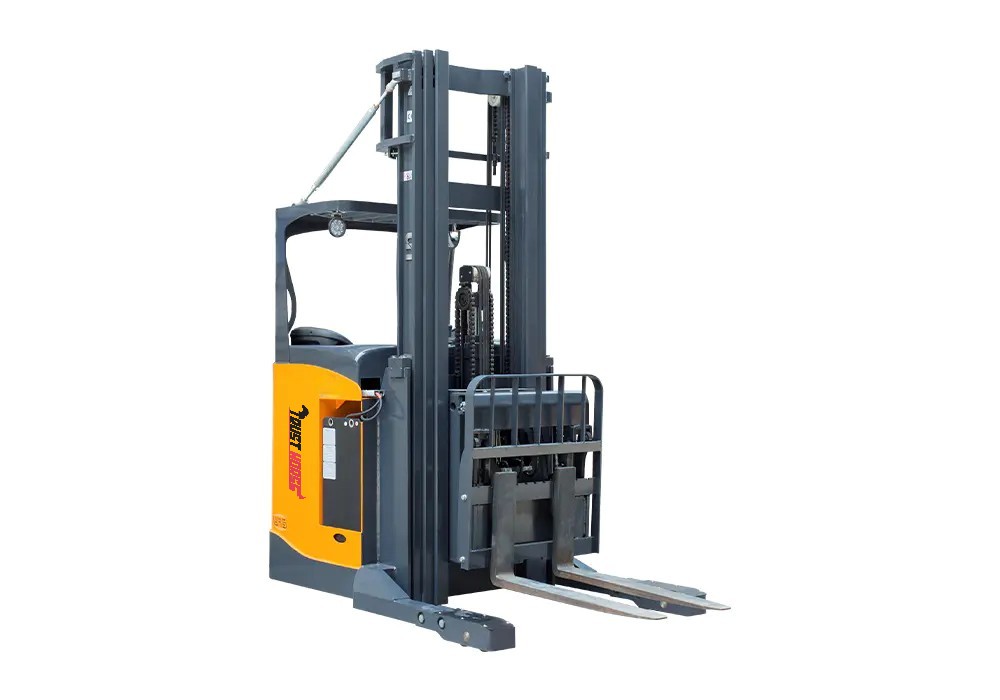

The Trust Horse Double Deep Reach Truck is an advanced material handling solution designed to maximize storage density and improve operational efficiency in double-deep racking systems.
With a maximum fork carriage reach distance of up to 920 mm, the truck can reach deeper into the racking system, providing an efficient solution for storing and retrieving pallets in double-deep configurations.
Supported by advanced technology and high-quality components, the Double Deep Reach Truck delivers precise, stable, and flexible operation while enhancing productivity and maximizing warehouse space utilization.
It is an ideal solution for logistics centers, distribution warehouses, high-density storage facilities, and double-deep racking systems where storage efficiency and operational productivity are key priorities.
Main Specification
|
Model |
FBRS15-KUQZ2 |
|
|
Rated Load Capacity |
Q (kg) |
1500 |
|
Load Centre |
C (mm) |
500 |
|
Overall Length |
L1 (mm) |
2752 |
|
Overall Width |
B1 (mm) |
1450 |
|
Height to Safeguard |
H5 (mm) |
2205 |
|
Min. Turning Radius |
Wa (mm) |
2070 |
|
Wheelbase |
Y (mm) |
1750 |
|
Travel Speed (Full Load) |
km/h |
9.0 |
|
Travel Speed (No Load) |
km/h |
9.5 |
|
Total Weight (Include Battery Box) |
Kg |
4060 |
|
Battery |
V/Ah |
48/420 |
