General Information

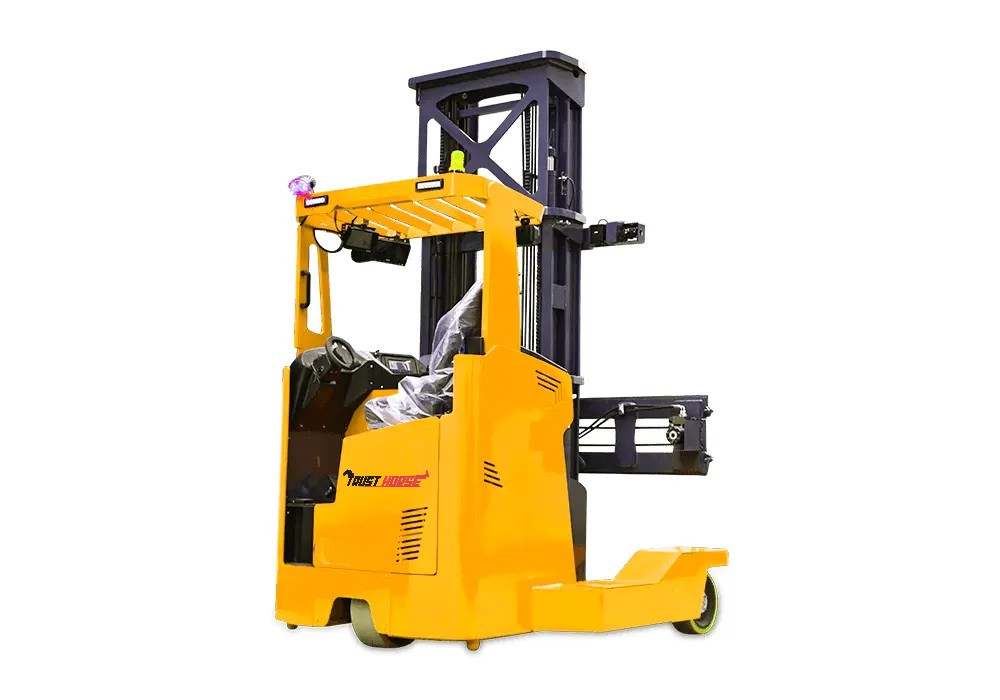

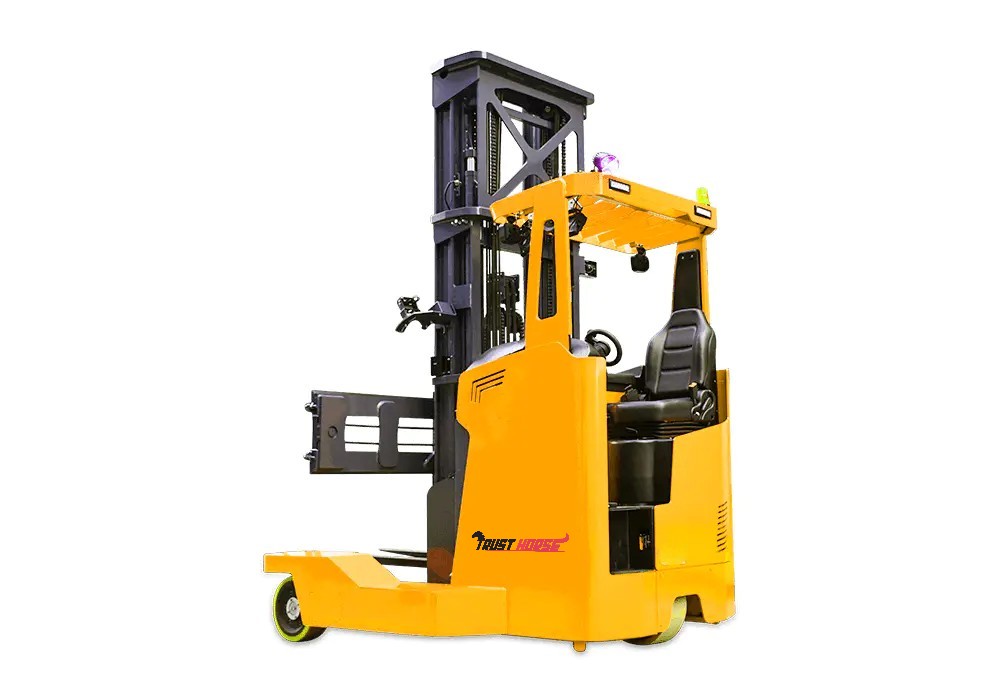

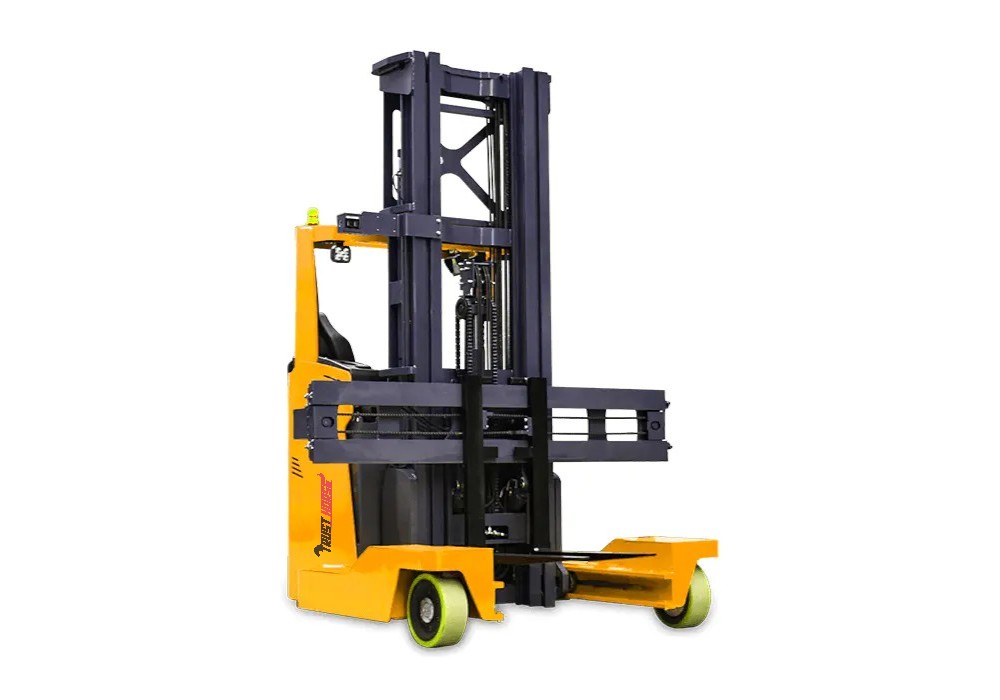

Trust Horse electric multi-directional forklift MQZ series allows movement for long loads in all four directions and can handle efficiently and economically long and bulky loads with ease in narrow aisles.
Reliability & Performance
- EPS+one switch to change the driving direction, with high work efficiency.
- Shimadzu brand gear pump and buffering hydraulic cylinder, with stable operation and low noise.
- USA Curtis controller, with precise control, simple parameter setting for controller, powerful function and less failure rate.
- Sumitomo brand hydraulic hose, anti-wear and tensile, with long service life.
Technical Information
|
Brand |
Unit |
TRUST HORSE |
|
Model |
|
MQZ |
|
Power type |
|
Battery |
|
Operation type |
|
Seated |
|
Service weight (incl. battery) |
kg |
5050 |
|
Rated capacity |
kg |
2500 |
|
Load center |
C(mm) |
600 |
|
Lifting height |
h3(mm) |
10000 |
|
Overall length |
l1(mm) |
2500 |
|
Overall width |
b1/b2(mm) |
1820/1270 |
|
Fork size |
l/e/s(mm) |
1070/122/40 |
